Insulated tap connectors for overhead bare main line
Insulated tap connector – N616
i Insulating tap connector for bare main line
Branch or public lighting clamp
Alu not insulated main 16 – 95 mm2
Alu/Copper insulated 4 – 16 mm2

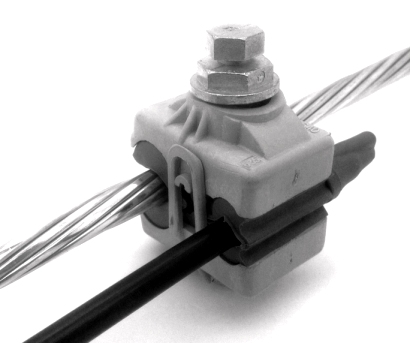

Insulated tap connector – N640
Insulating tap connector for bare main line
Branch tap piercing clamp
Alu not insulated main 16 – 120 mm2
Alu/Copper insulated 6 – 35 mm2
Insulated branch connector – N640.B
Insulating tap connector for bare main line
Branch tap piercing clamp
Alu not insulated main 16 – 120 mm2
Alu/Copper insulated 6 – 35 mm2
Insulated multi-tap connector – N617
Insulating tap connector for bare main conductor
2x taps clamp / Stripping type
Alu not insulated main 22 – 150 mm2
Alu/Copper insulated 6 – 35 mm2
Insulated tap connector for main cables – N70
Tap piercing clamp for main bare cable
Branch tap piercing clamp
Alu not insulated main 22 – 120 mm2
Alu/Copper insulated 16 – 95 mm2
Insulated tap connector for main derivation – N150.2.B
Piercing clamp for overhead bare main line
Branch tap piercing clamp
Copper not insulated main 35 – 150 mm2
Alu/Copper insulated tap 35 – 150 mm2
NILED, as european manufacturer, is developing the technology of insulated tap connectors for more than 70 years. Shear-head bolt ensures precise tightening control of the insulated piercing tap connectors. Linemen keep the possibility to disasembly the insulation piercing clamps thanks to the second head of the nuts. Moreover, the installation is clean and easy because very low qty of grease is required for the watertightness of these insulated tap connectors. Here-above tap connectors allow to connect insulated cables on bare main lines (not insulated lines).
No electrical risk neither during, nor after the electrical connexion because all parts the IPC (Insulation Piercing Connectors) are perfectly insulated. The proposed range of NILED piercing connectors includes very wide range of cross sections. Electrical installer will find insulation piercing “IPC” clamps for networks derivation, tap branch or public lighting lines.Additionally, linemen will find in Niled catalogue all accessories for LV ABC installation (Anchoring fittings, protecting or insulating devices, tooling for cable preparation, stringing and pulling devices…).
